AFC2000

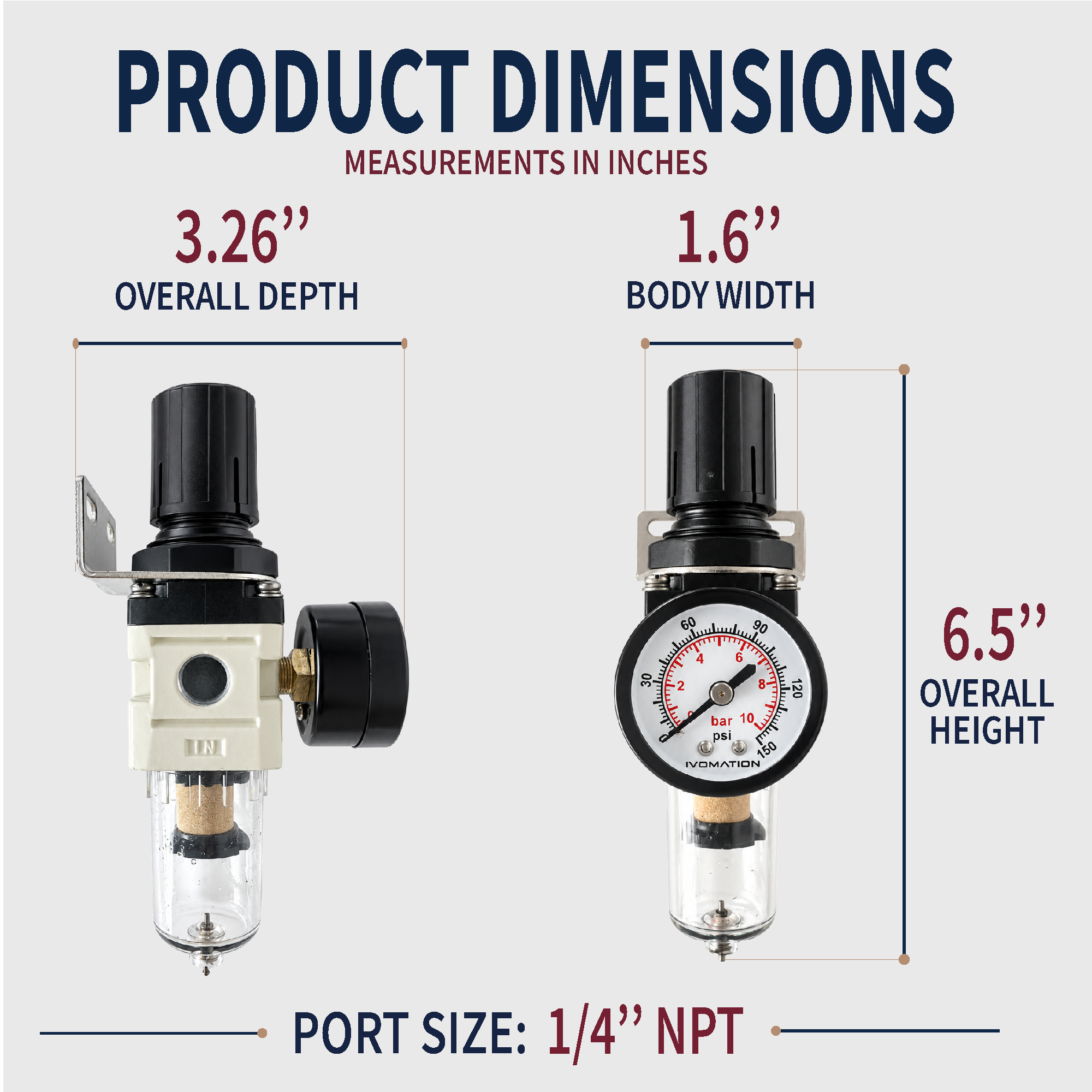

Select an image to enlarge. Product media, dimensions and application visuals appear here when available.
Why choose AW2000
What it does for your air system.
Regulator core
The integrated regulator core stabilizes pressure inside a compact two-function unit.
Drain bowl
The bowl area keeps condensate visible and supports routine air preparation maintenance.
Port connection
Standardized connections help distributors and OEM users specify the right assembly quickly.
Integrated structure
An integrated filter regulator made for quick selection.
Pressure control
An integrated filter regulator made for quick selection.
Applications
Made for practical compressed-air work.
Air compressors
Confirm pressure, airflow, port size and air-quality requirements before installation.
Spray equipment
Confirm pressure, airflow, port size and air-quality requirements before installation.
Pneumatic tools
Confirm pressure, airflow, port size and air-quality requirements before installation.
Compact machines
Confirm pressure, airflow, port size and air-quality requirements before installation.
Technical details
Specifications for confident selection.
Combines filtration and pressure control in one compact air-preparation unit.

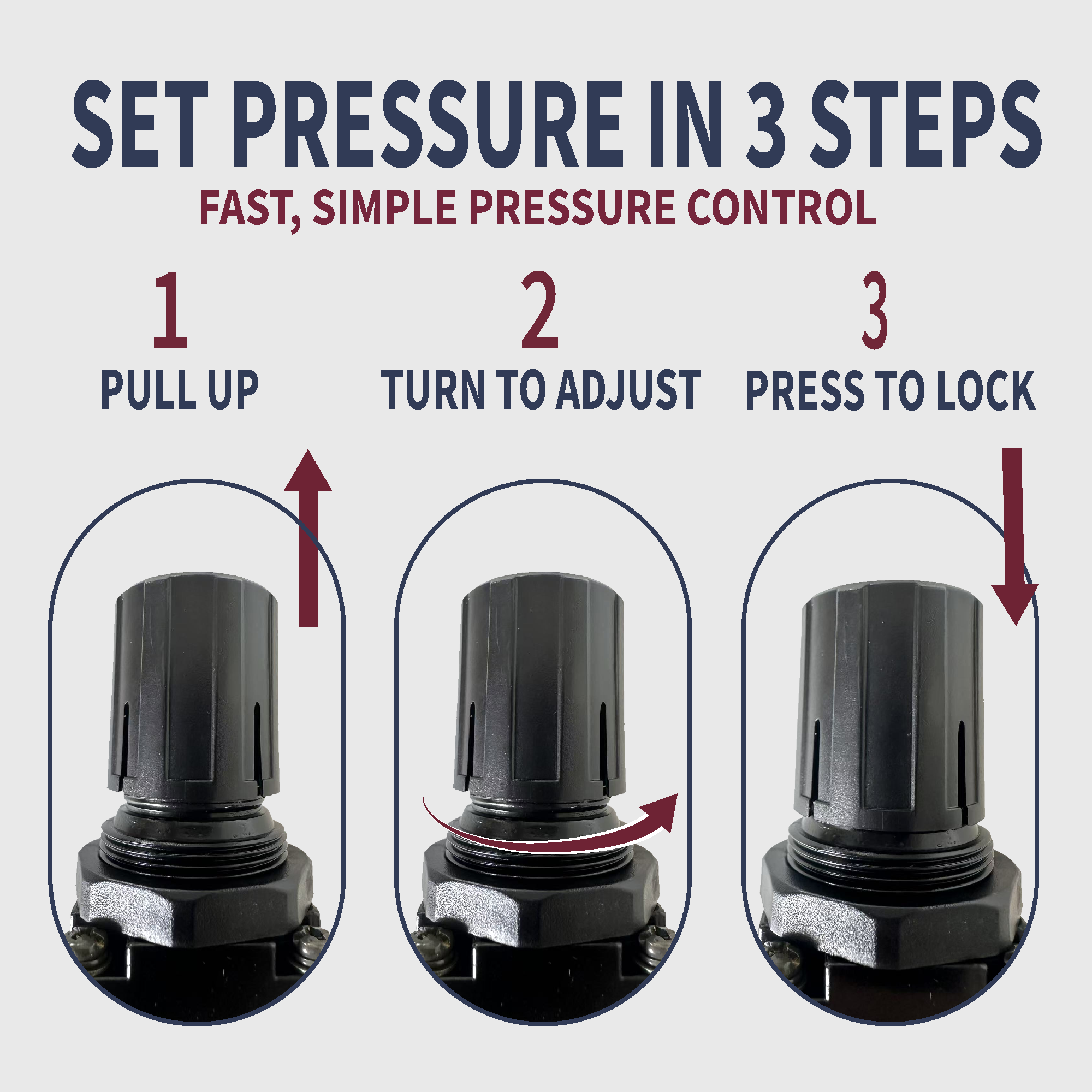

Stable pressure adjustment
G/BSP thread options
Workshop-ready operating range
Durable and lightweight
Selection
- Model
- AW2000
- Series
- AW Series
- Port size (G/BSP)
- 1/4"
- Max. flow rate
- 1750 L/min
Air preparation
- Filtration
- Standard: 20 µm; options: 5, 10, 40, 70 µm
- Water bowl capacity
- 80 cm3
- Regulating range
- 0.5-8.5 bar

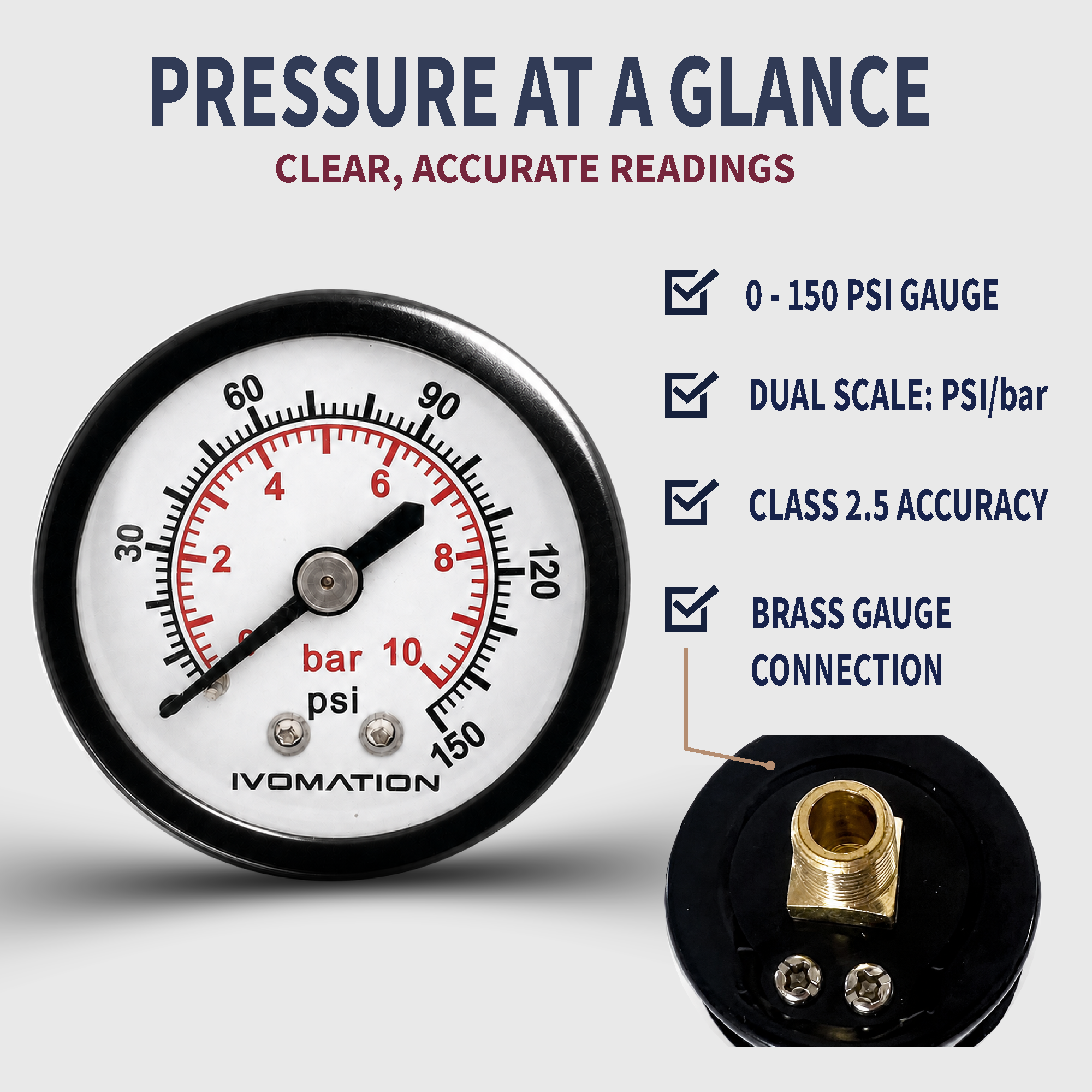

- Gauge port
- Available by configuration
Operating details
- Medium
- Compressed air
- Max. supply pressure
- 15 bar
- Max. operation pressure
- 9.9 bar
- Ambient temperature
- 5-60°C
- Body material
- Aluminum die-casting forming
- Bowl material
- PC
- Bracket model
- B220
- Construction
- Relieving type
Different thread types and OEM/ODM configurations are available on request.
Why IVOMATION
Industrial detail with ecommerce clarity.
FAQ
Before you order.
It is intended for compressed-air systems. Confirm operating pressure, required flow and thread specification before ordering.
Match the thread standard and port size to your air line, then verify that the selected size supports the required flow rate.
Yes. Send the model, configuration, quantity, application and destination so the team can review the requirement.

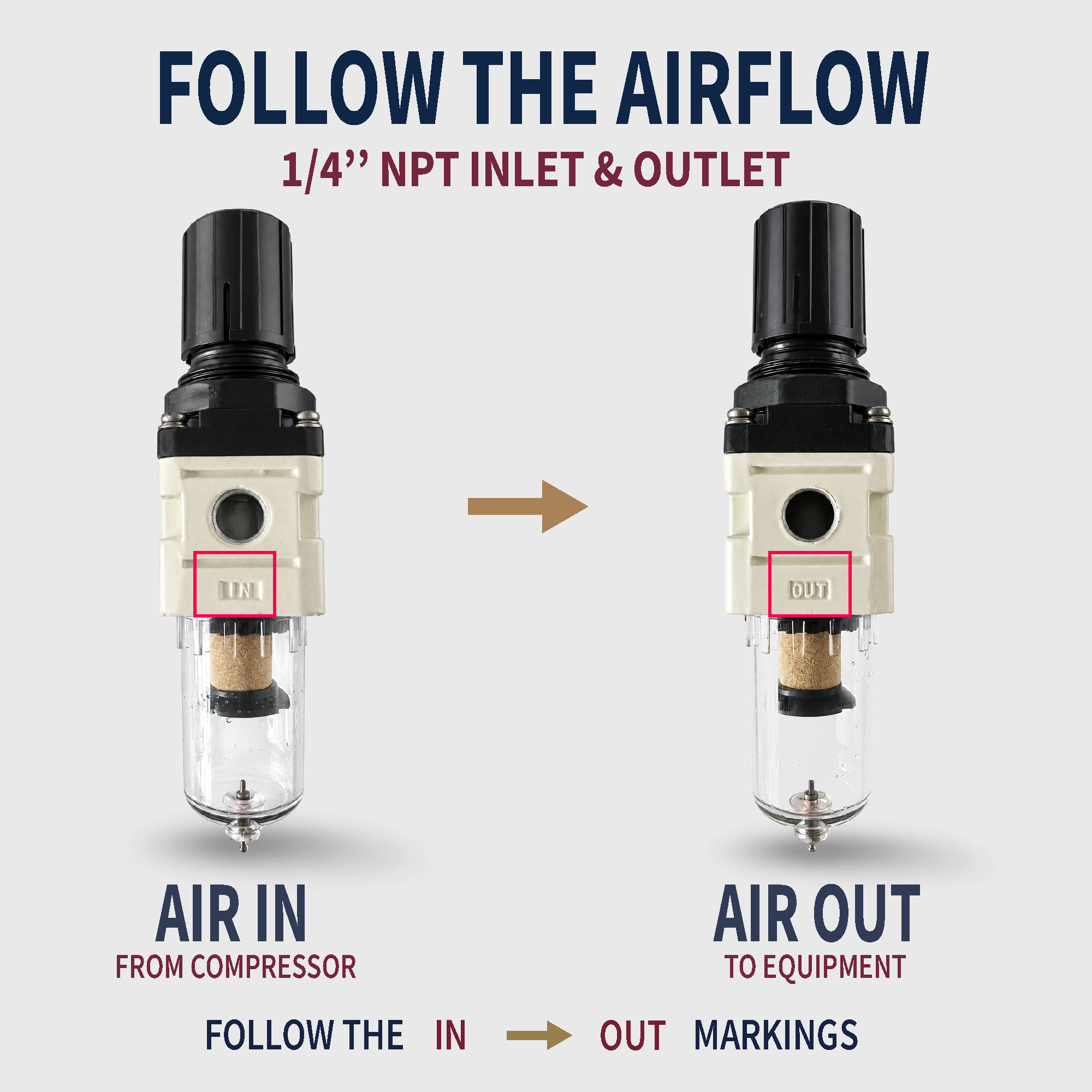

Check airflow direction, pressure limits, drainage access, installation orientation and the maintenance space around the product.
